Description
xSPECIFICATIONS
Brand Name: dgsunlight
Origin: Mainland China
Number of Panels: >20
Flexible Solar Panel: Yes
Foldable Solar Panel: No
Type: Solar Panel
Model Number: RGN32-100
Size: 1050*530*2.5mm

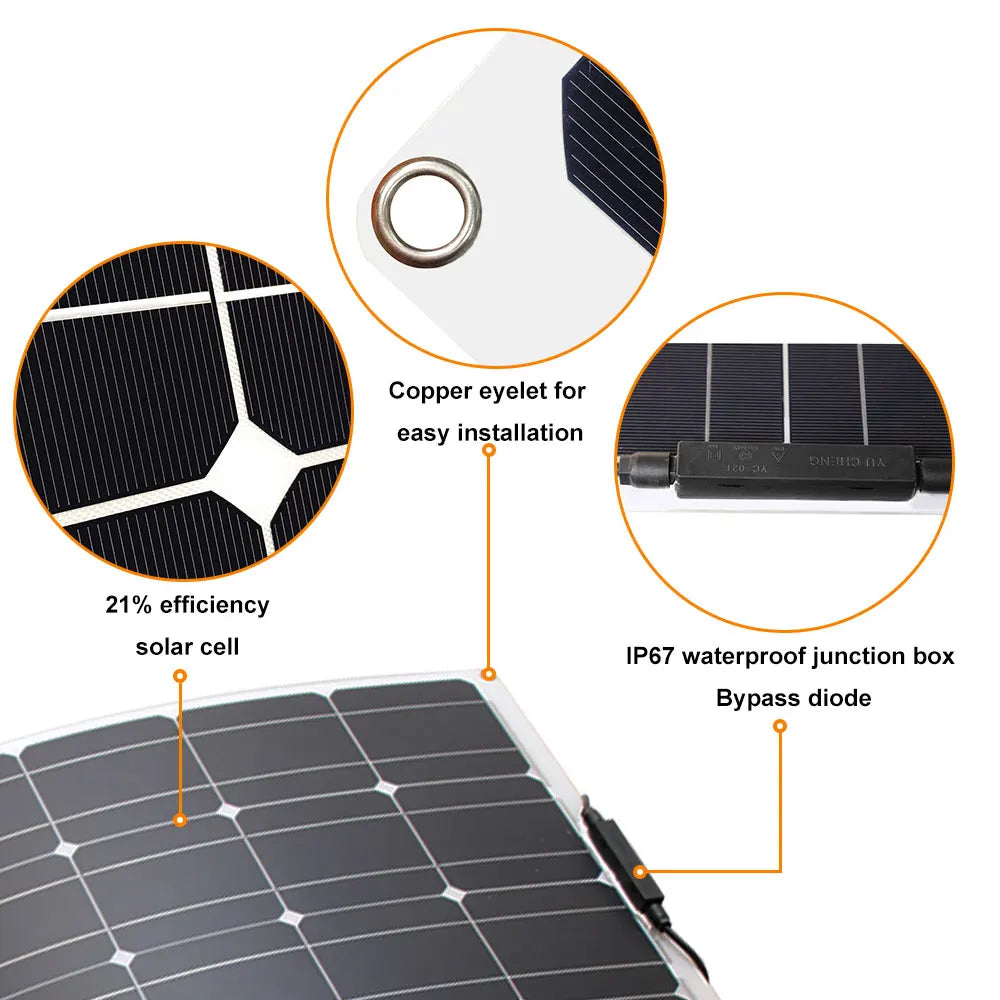

Material: Monocrystalline Silicon
Max. Power: 100w/pcs
is_customized: Yes
Certification: CE
Certification: RoHS
Max Power: 100w
Max Power voltage: 16v
Max Power Current: 6.25A
Open Circuit Voltage: 19.2V
Short Circuit Current: 6.68A
Weight: 1.9KG
This product we set up warehouse in Spain, Czech Republic and Belgium，When you buy it,if you are in EU,we will ship to your country and it will be fast delivery.
However，
the zip code in Spain that starts with 35, 38, 51, 52.
the zip code in France that starts with 97
the zip code in Portugal that starts with 9.
Above zone for local shipping company,they are remote area.there is no logistics shipping to above zone from Spain or Belgium.we will not ship to above zone,please not place order with above address,thanks.
NOTE

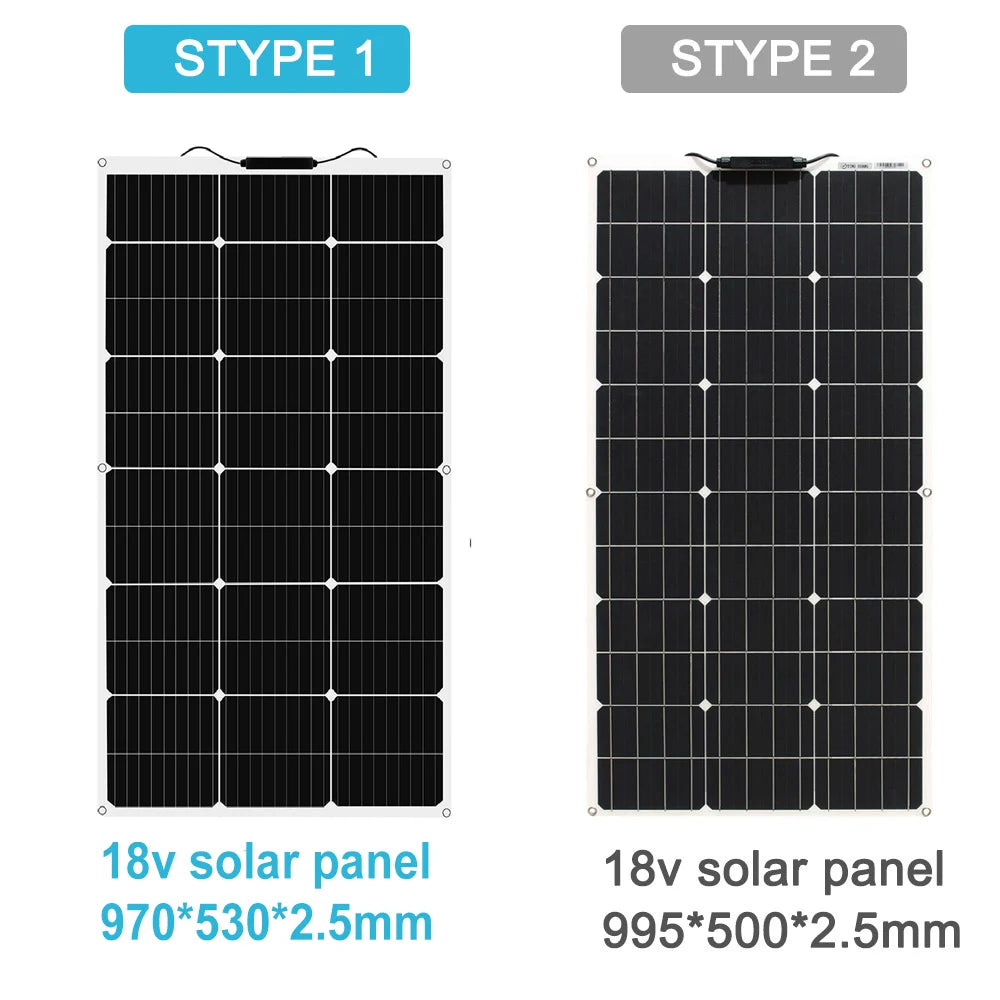

Our products have two models, both models are shipped randomly
STYPE1: 18V flexible solar panel
STYPE 2: 18V flexible solar panel
Solar panel packing list

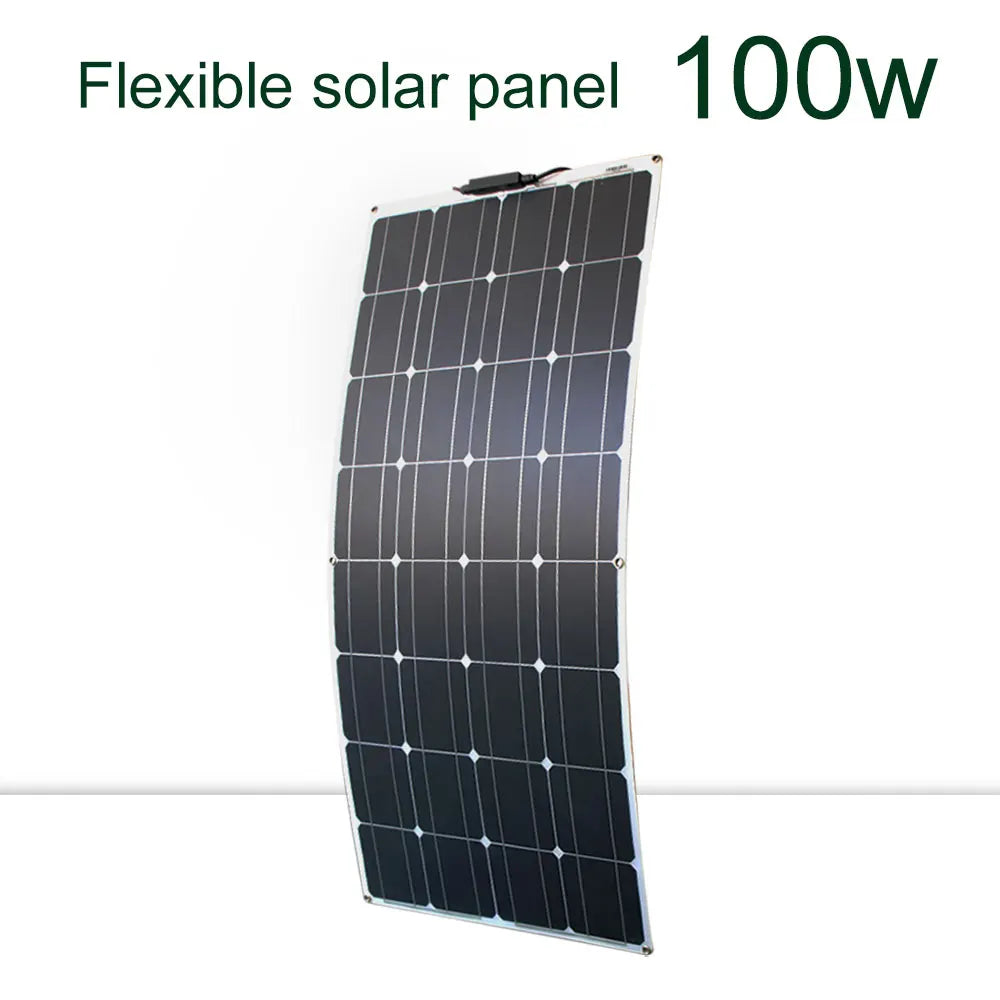

100w solar panel= 1pcs 100w 12v flexible solar panel（solar panel only）

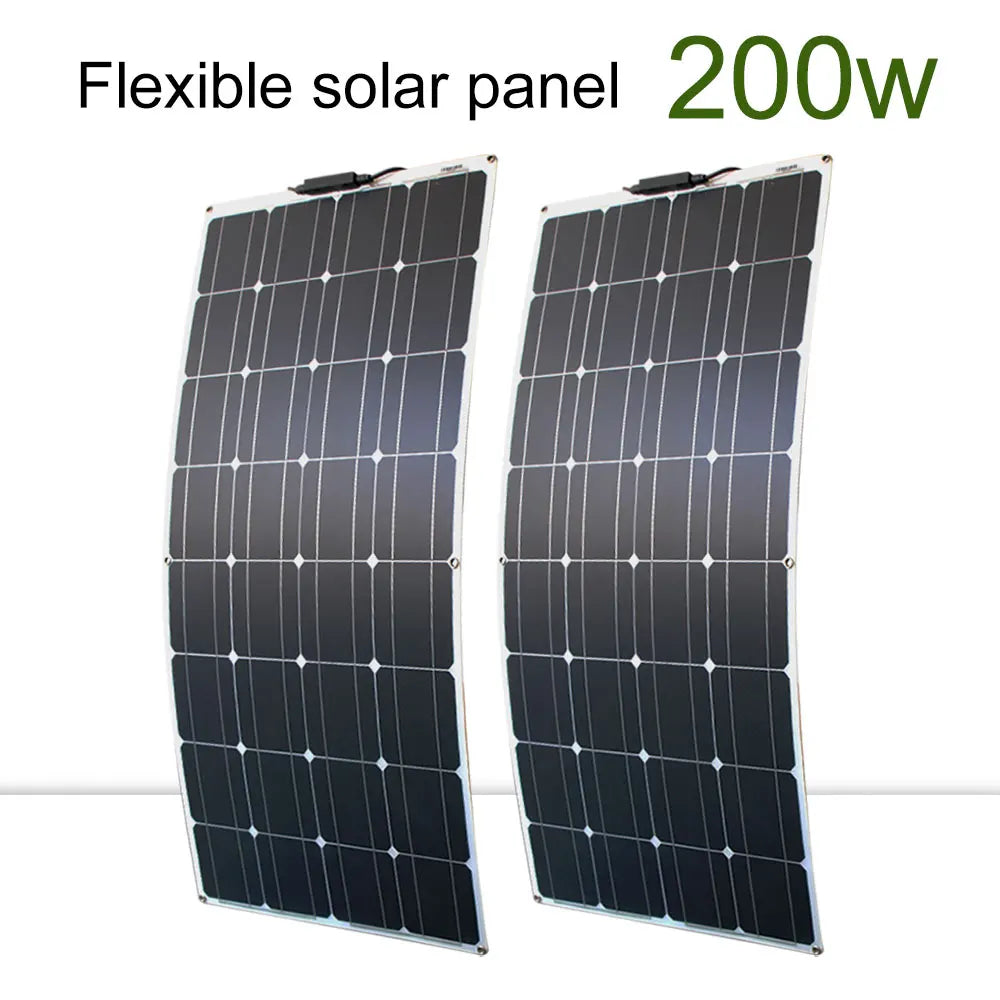

200w solar panel= 2pcs 100w 12v flexible solar panels（solar panel only）

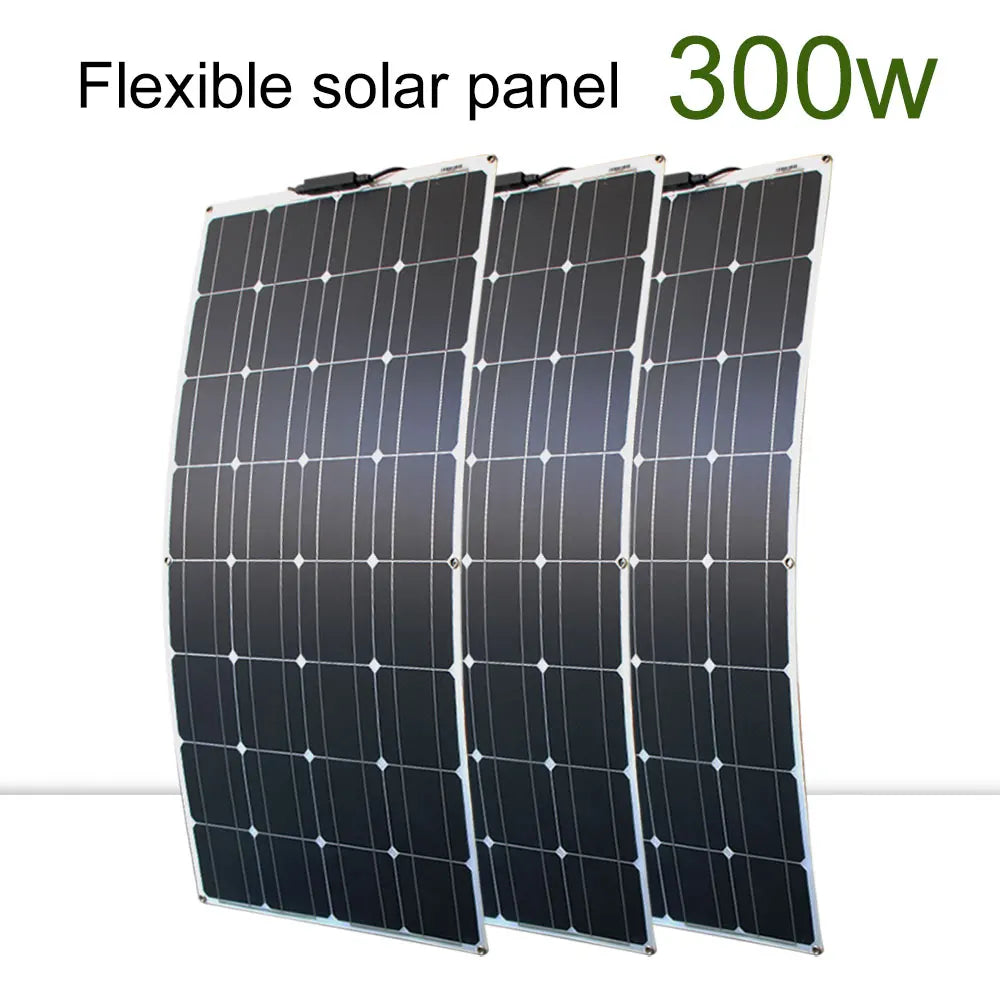

300w solar panel= 3pcs 100w 12v flexible solar panels（solar panel only）

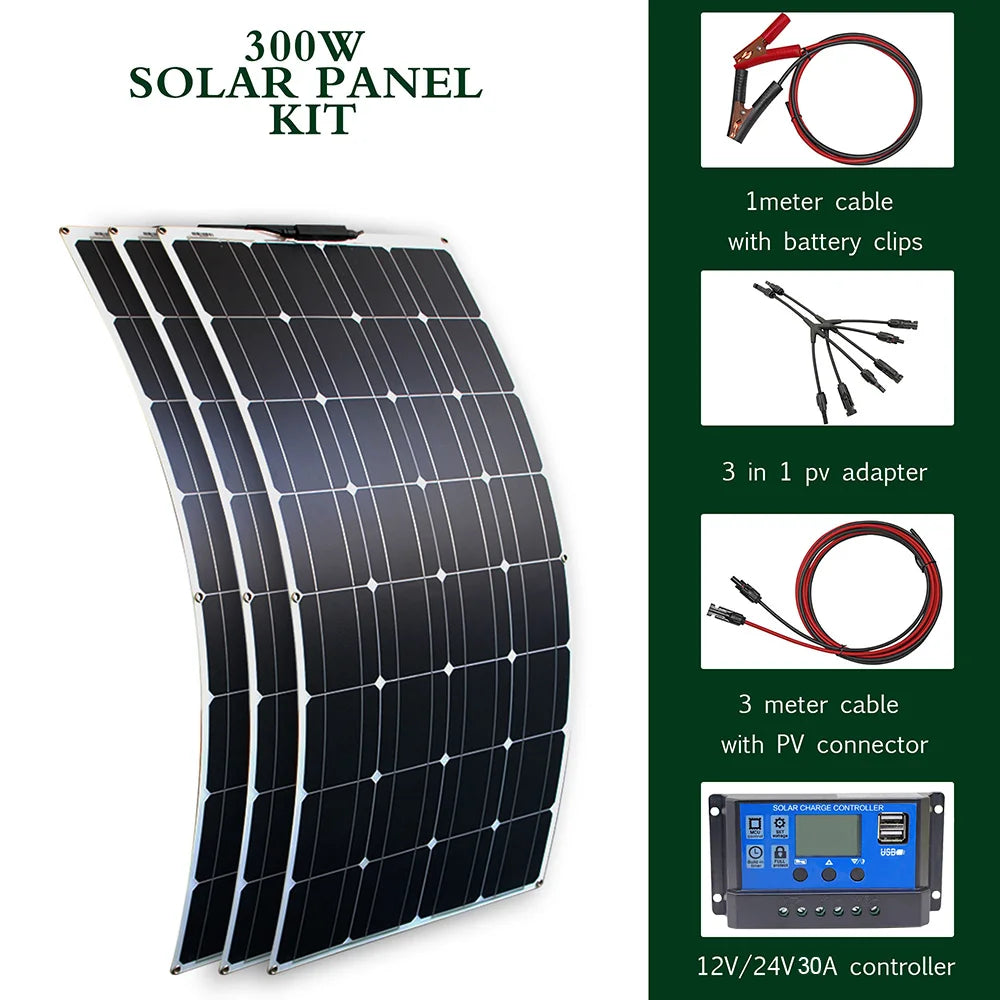

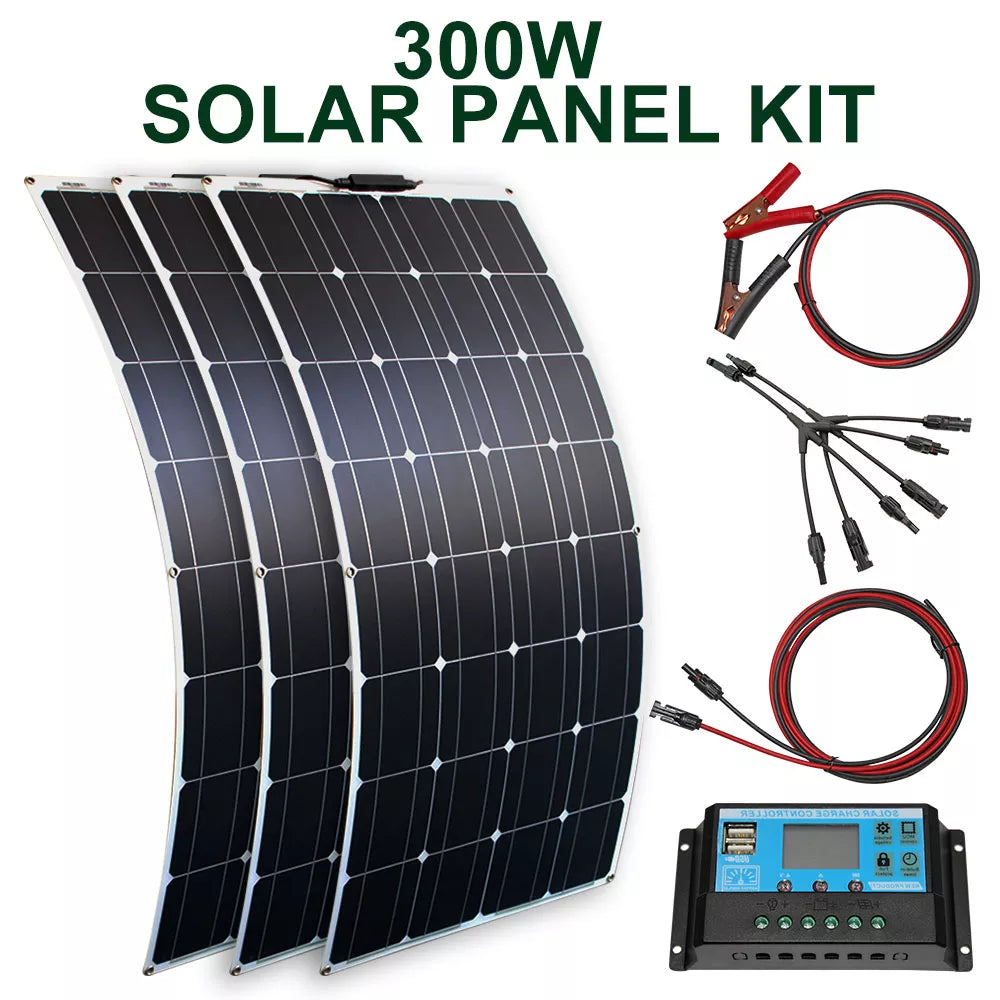

300W solar panel system packing listing
3*100W solar panel
1 *3 in 1 adapter
1*12V/24V 30A solar charger controller
1*3 meters cable with PV connector
1*1 meter cable with Alligator clip

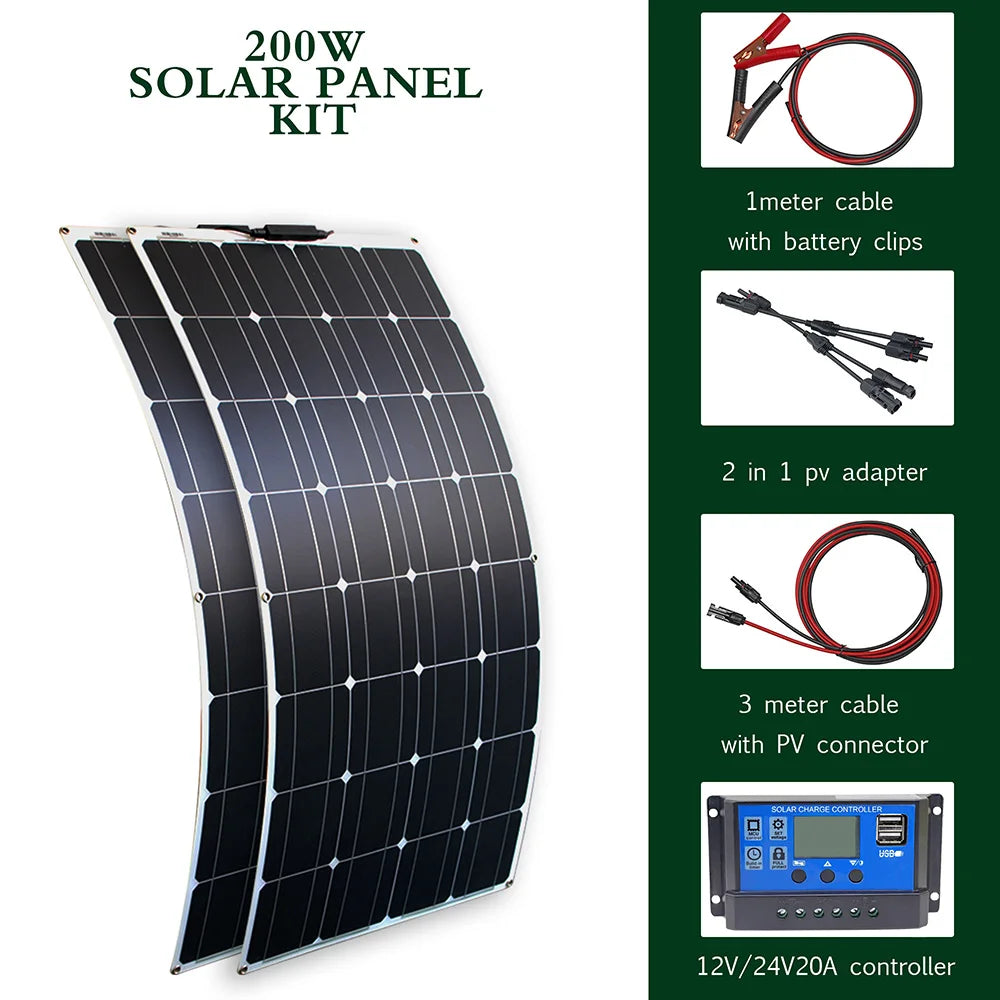

200W solar panel system packing listing
2*100W solar panel
1 *2 in 1 adapter
1*12V/24V 20A solar charger controller
1*3 meters cable with PV connector
1*1 meter cable with Alligator clip

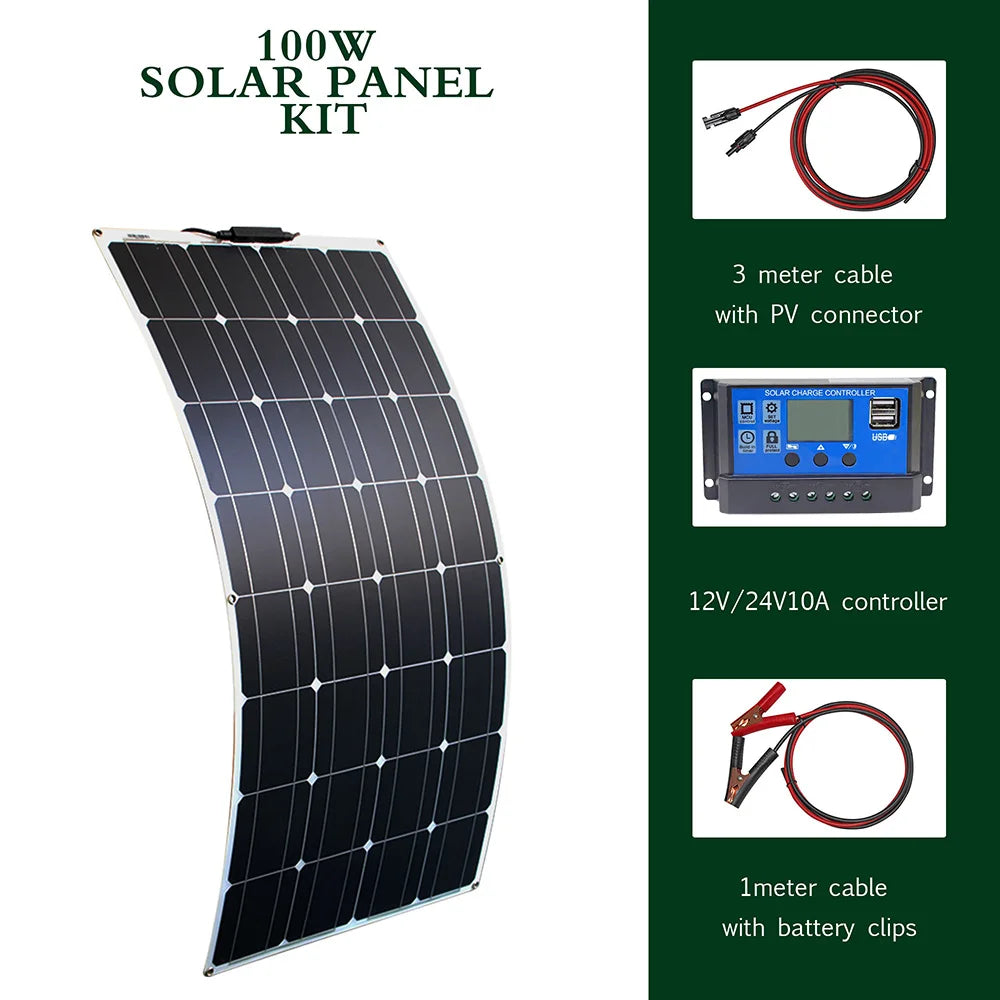

100W solar panel system packing listing
1*100W solar panel
1*12V/24V 10A solar charger controller
1*3 meters cable with PV connector
1*1 meter cable with Alligator clip
Electrical Characteristics
Max Power 100 W
Max Power voltage 18.18 V
Max Power Current 5.5 A
Open Circuit Voltage 21.8 V
Short Circuit Current 5.83 A
Number of cells in Series 33
Cell size 157X157 mm
Mechanical Characteristics
Dimension 970X530X2.5mm
Weight 1.6kg（±0.1kg）
Cable 0.9 meter 2X2.5mm
Thermal Characteristics
Temperature coefficient of Pmax -0.38%/℃
Temperature coefficient of Voc -60.5mV/℃
Temperature coefficient of Isc 2.2mA/℃
NOTC 47℃+/-2℃
Operating Temperature -20℃ - +65℃
Safety Instructions:
1.Make sure your battery has enough voltage for the controller to recognize the battery type before first installation.
2.The battery cable should be as short as possible to minimize loss.
3.The regulator is only suitable for lead acid batteries: OPEN, AGM, GEL(It is not suited for nickel metal hydride, lithium ions or other batteries).
4.The charge regulator is only suitable for regulating solar modules. Never connect another charging source to the charge regulator.

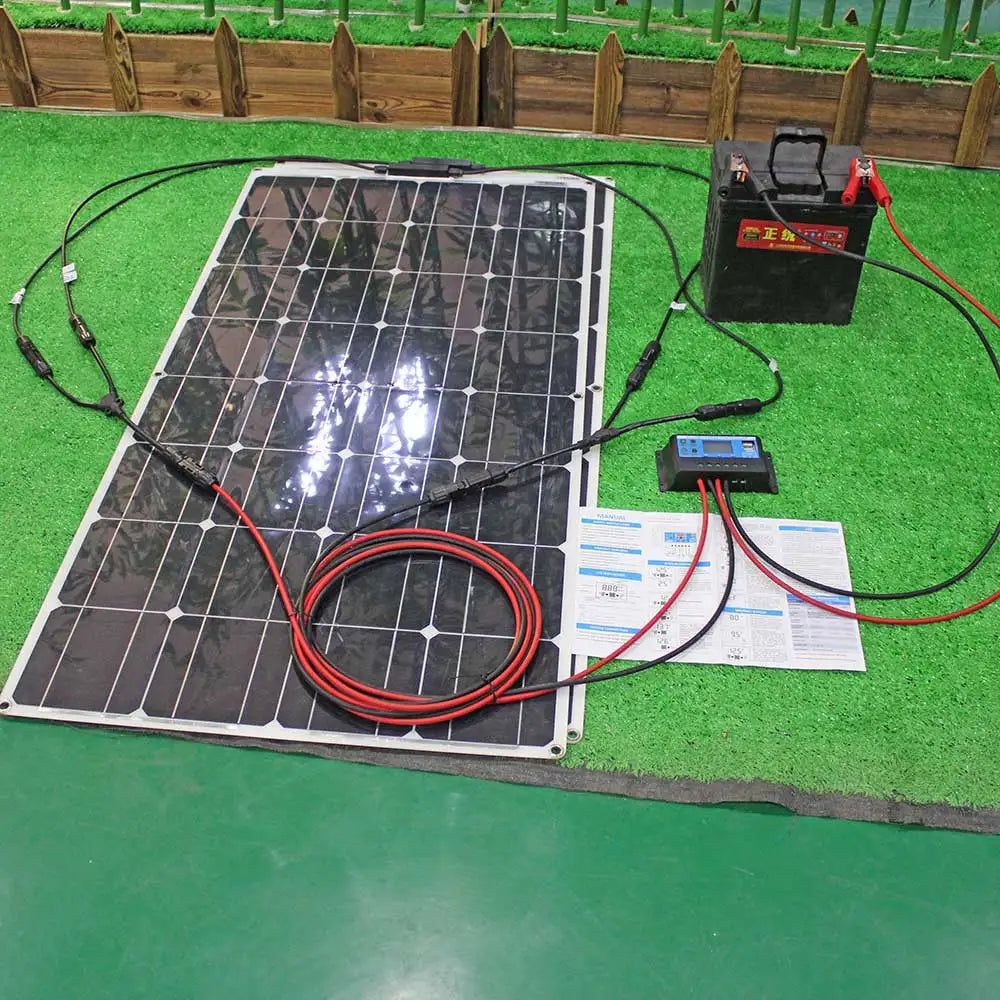

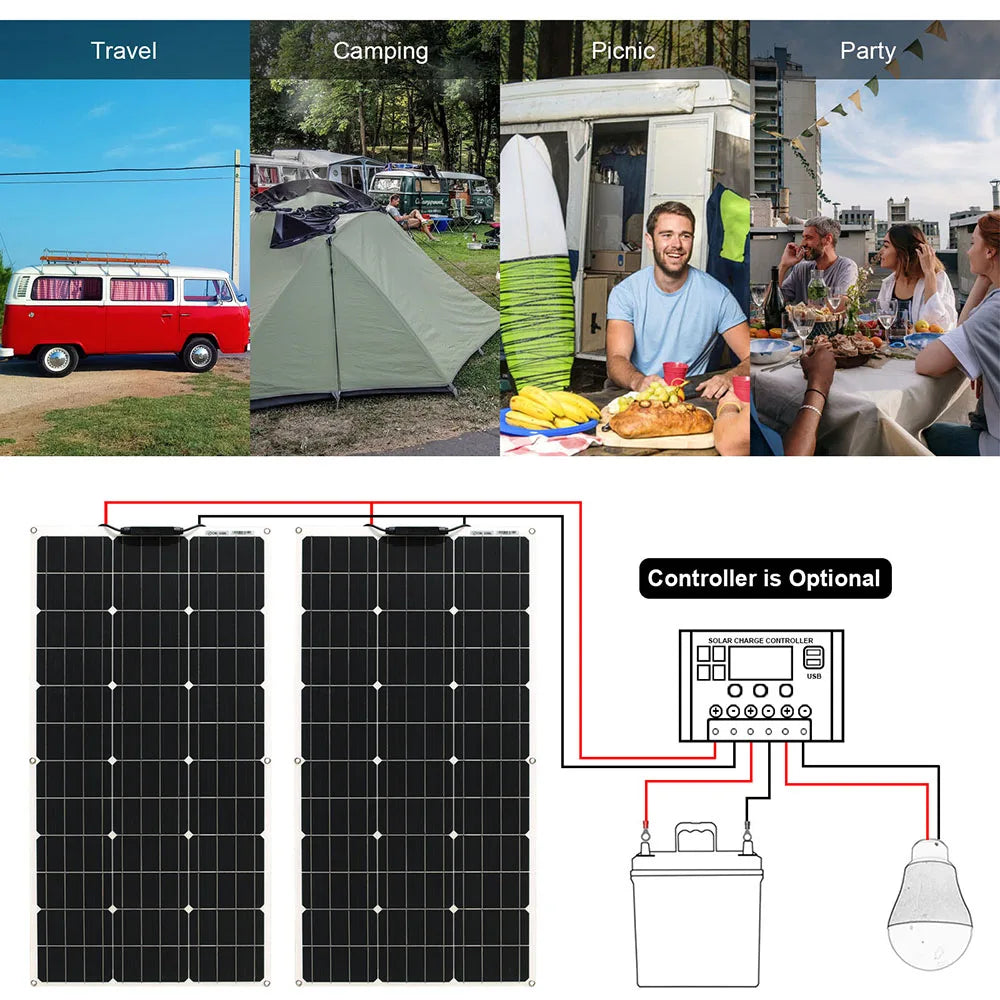

System Connection:
1.Connect the battery to the charge regulator - plus and minus.it will show 1 ,if it detects 12V battery, 2 if it detects 24V battery.
2.Connect the photovoltaic module to the regulator - plus and minus.
3. Connect the consumer to the charge regulator - plus and minus.
About the parcel send from China
Sometimes the customs will charge the clearance fees. If you reject the item because of customs clearance, you will have to pay for the shipping cost of the returned item.
When the goods arrive at the destination country, please contact the local logistics service provider for customs clearance and delivery.
